Common Electrical Problems in Older Homes

An older house was wired for a few lamps, a fridge and a radio, and most of what it hides sits behind finished walls. Some of these problems show up as flickering lights or breakers that trip for no clear reason, and some give no sign at all until an electrician opens a box. Below are the common ones, with the order we suggest fixing them in.

Two-Prong Outlets With No Ground

Outlets with only two slots usually sit on circuits without a ground wire, so a fault in a metal-cased appliance has no safe path to follow. Fitting a three-prong receptacle to the same box adds no ground. The fix is to run a ground to it or, as the code allows, protect it with a GFCI instead.

Missing GFCI and AFCI Protection

Ground fault circuit interrupters (GFCIs) cut power when current leaks to ground, and the Ontario code has added locations for them over the years, so an older bathroom or kitchen may have none. Arc fault circuit interrupters (AFCIs) watch for the arcing that damaged wire produces inside walls, and they are now required on bedroom and most living area circuits in new construction and major renovations. Older homes do not have to retrofit them, but both can be added, and our guides to GFCI outlets and arc fault breakers explain how.

Too Few Circuits for Modern Use

An older house tends to have fewer circuits and fewer outlets, so today's appliances end up sharing them. Breakers that trip when two appliances run together, outlets that feel warm and lights that dim are the usual result. New circuits, including dedicated ones for heavy appliances, spread the load properly.

Knob and Tube and Aluminum Wiring

Knob and tube wiring is common in houses built before the late 1940s. It has no ground, its insulation turns brittle with age, and it can overheat where insulation has been blown in around it. Many Ontario insurers will not write a new policy on a home where it is still live.

Aluminum branch wiring went into many Ontario homes in the 1960s and 1970s. Its connections expand, loosen and oxidize at outlets and switches, which makes them run hot. The usual remedy is pigtailing each connection to copper with connectors approved for the job, and a full copper rewire is the alternative where the wiring is damaged.

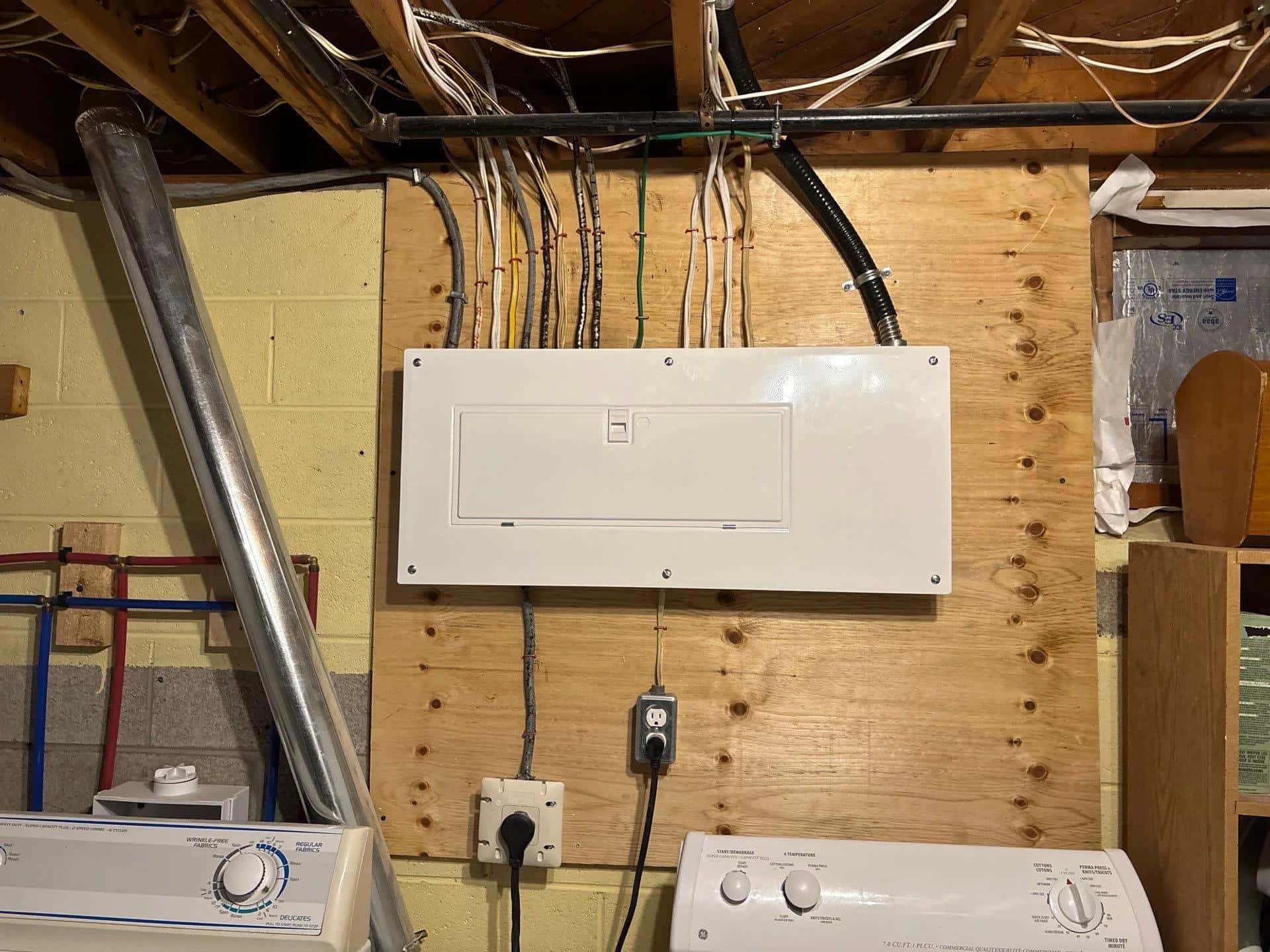

A Service and Panel Sized for Another Era

Many older homes run on a service of 100 amps or less. That can be enough for a small house with no electric heat or large loads. Central air, an electric dryer, a hot tub or a charger for an electric vehicle usually benefit from 200 amp service, as our 100 amp vs 200 amp comparison explains. The panel itself ages too: most last 25 to 40 years, fuse boxes belong to a lighter era of use, and some older breaker panels are known for breakers that may not trip. Our post on the signs you need a panel upgrade goes through them.

Signs That Something Needs Attention

Call an electrician if you notice a burning or hot plastic smell, a buzz from a receptacle or the panel, breakers that trip often, lights that flicker in one room or dim across the house, or scorch marks around a receptacle. A smell or a buzz is the urgent one: turn that circuit off and call the same day.

What to Fix First

Anything hot, smelling or sparking comes first, because it is a live fault. Next come the known fire risks: a recalled panel, active knob and tube circuits and aluminum connections that have not been pigtailed. Then capacity, before you add a big new load, since moving from 100 to 200 amps runs $3,500 to $5,500 and goes better planned than rushed. GFCI, AFCI and tamper-resistant protection can follow. If you would like the list for your own house, the Home Electrical Health Check gives you one. A licensed electrician inspects the panel, the outlets and the visible wiring, then sends a written report with photos.
